Tent oil heater FH 40

The heaters are based on the indirect fired (clean air) principle to avoid introducing combustion or fumes into occupied spaces. With their industry-leading warm-up capabilities, the forced air system heaters are essentially self-contained and require no more than an external source electric power and some fuel in the built-in tank. They run on almost all diesel fuels.

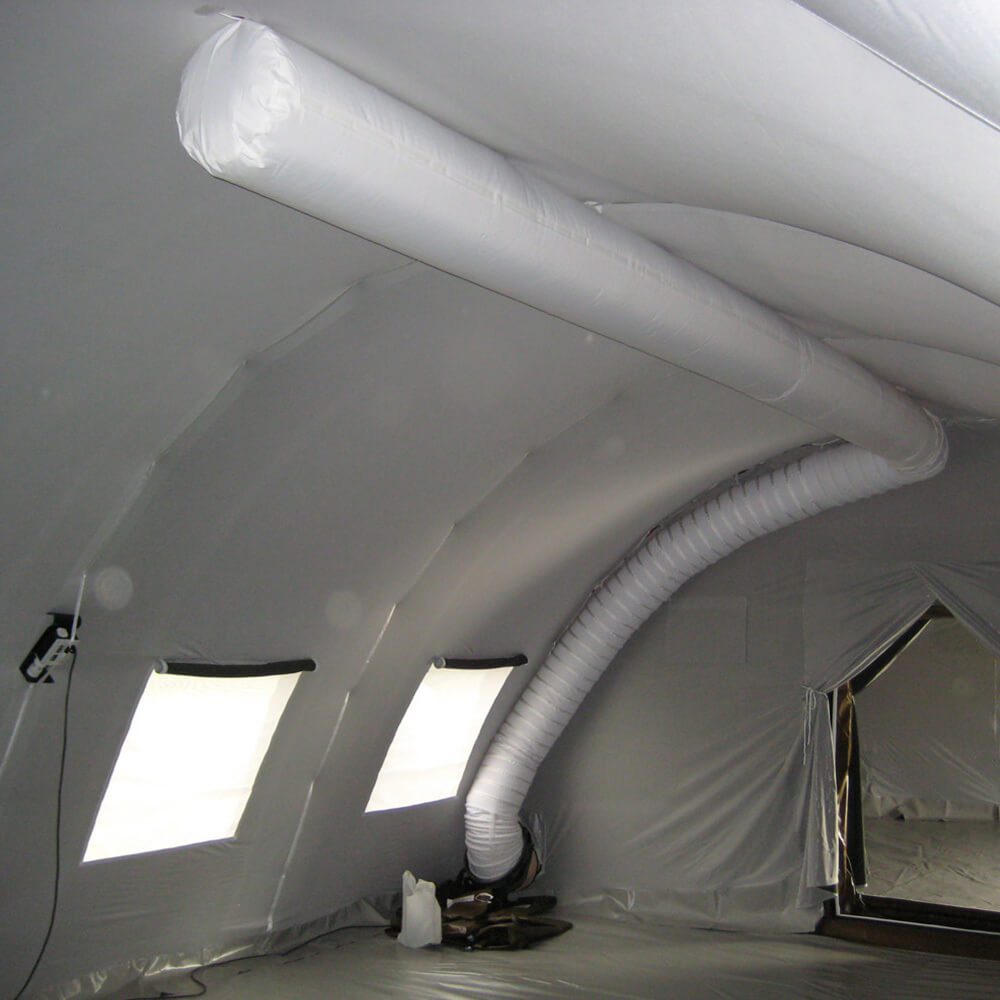

Specifically developed to provide heating in tents or other temporary and transportable buildings, FH Warm Air Heaters are suitable for outside installation with supply and return air ducted to the tent or temporary building.

In Stock

Model description

  • Can operate at temperatures down to -40°C
  • Creates a comfortable working environment
  • Equipment and transportation such as helicopters stay warm and ready for use, reducing wear and tear and ensuring quicker response times
  • Reliable and virtually maintenance free
  • Easy to transport
  • Can be set up by one person without the use of tools, and is easy to operate
  • Developed in close collaboration with the armed forces of NATO countries
  • Ideal for open air operation with ducted supply and return air
  • Adjustable fresh-air intake
  • Large built-in fuel tank
  • The efficient multi-liquid burner accepts almost all diesel fuels
  • New innovative 2 stage burning principle, which reduces energy consumption, creates a more comfortable room temperature and reduces wear and tear
  • CE-marked

Product variants

  • Bronze: unit with built-in wheels
  • Silver: bronze package + lifting pockets
  • Gold: silver package + stakable frame

Technical data FH 40

  • Power: 36-49 kW
  • Air displacement: 2555 m3/h
  • Noise (measured 1.5 m from the heater with tube): 70 dB (A)

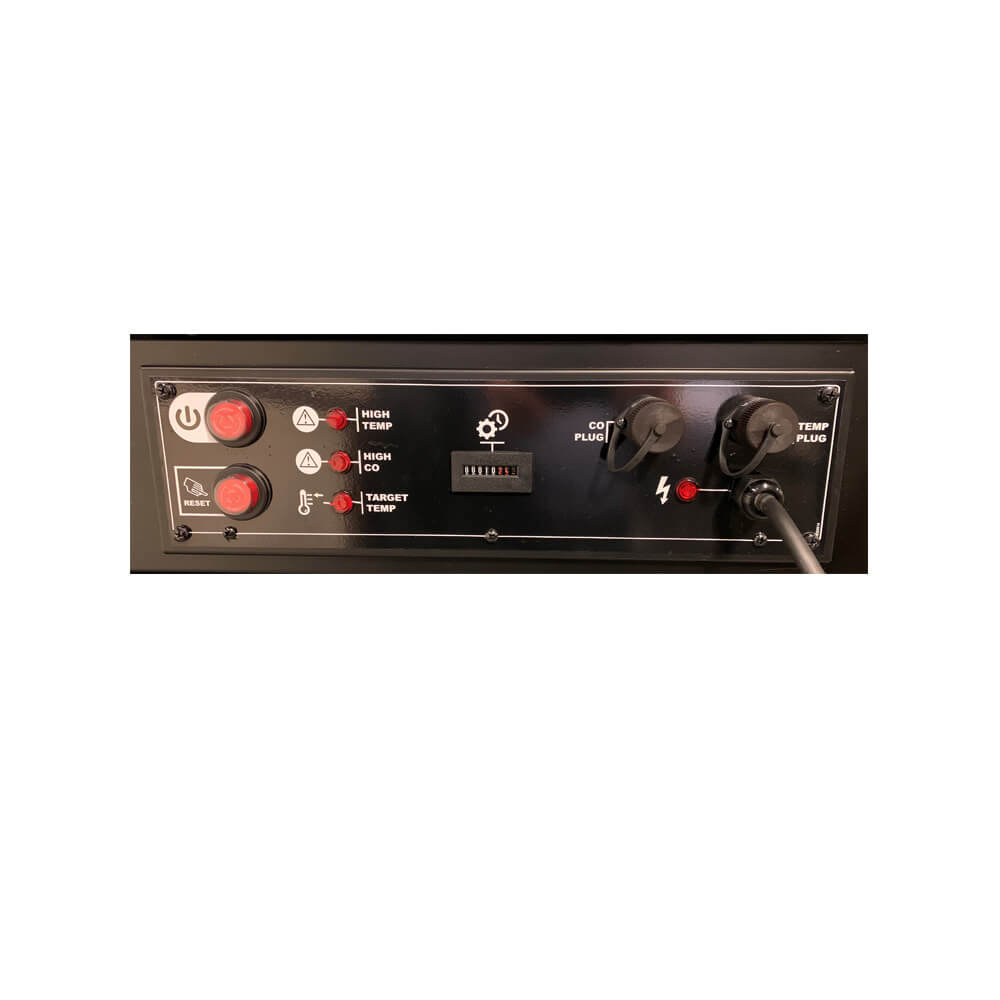

  • Control panel protection: IP 44
  • Max. fuel consumption: 2,9-3,9 lit/h
  • Power supply: 230 V, 50 Hz
  • Rated current: 4,2 A
  • Air temperature rise (inlet-outlet): 36-49°C
  • Hot air vent: 400 mm
  • Heater dimensions l/w/h: 1071 x 1723 x 718 mm
  • Weight: 110 kg
