Key features
- Self contained with fully automatic operation
- Integral humidistat
- Constant flow fan – automatically adjusts to ducting
- Polyester coated evaporator and condenser
- Plastisol coated galvanised steel cabinet
- Hot gas defrost for low temperature operation
Technical data
- Operating temperature range: 0 – +35°C

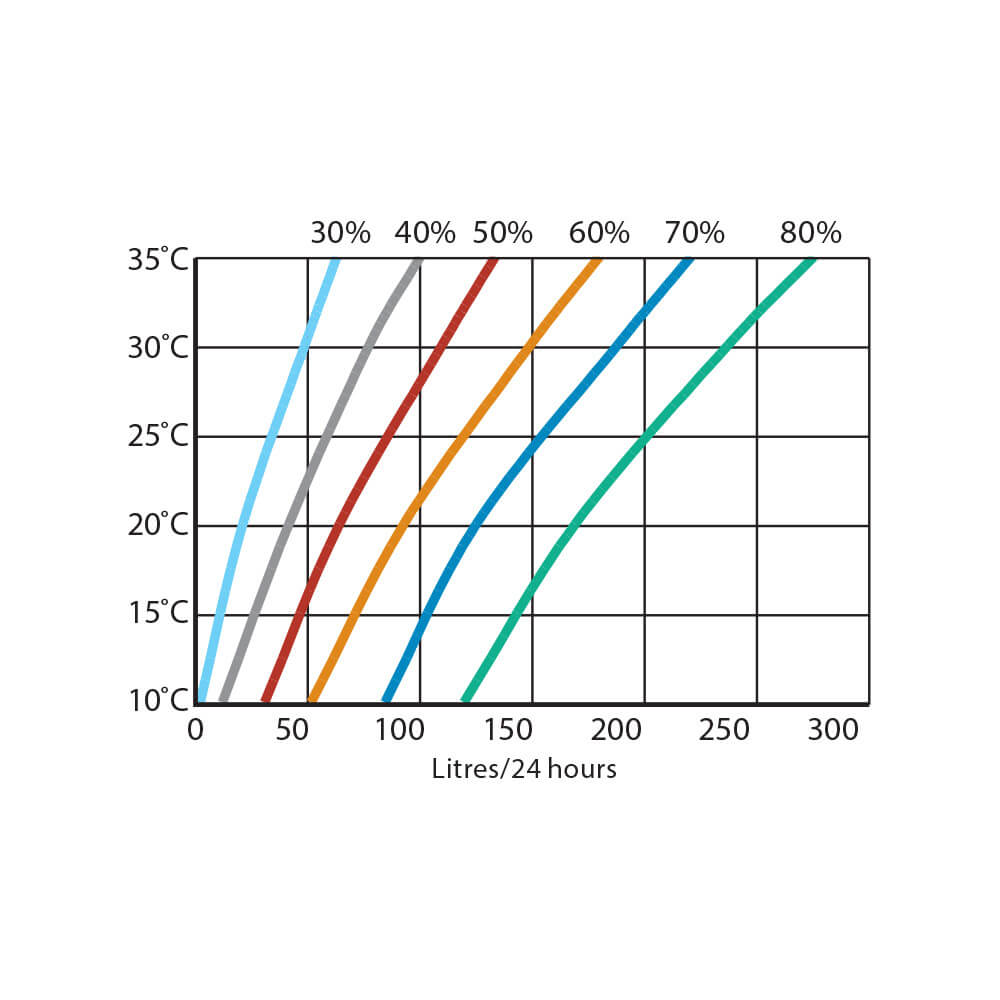

- Dehumidification @ 30°C/60% RH: 150 l/24h
- Heat recovered to air @ 30°C/60% RH: 7,4 kW
- Air flow: 2.500 m3/h
- External static pressure: 0-200 Pa
- Sound pressure level @ 3m: 58 dB(A)
- Refrigerant: R407c
- Power supply: 230/1ph/50 V/Hz
- Nominal power consumption: 2,5 kW
- FLA (electrical): 21 A
- Maximum supply fuse: 30 A
- LRA (compressor start): 61 A
- LRA (compressor soft-start): 28 A
- Heater type: top box electric (optional)
- Heat output: 9 kW
- FLA (heater): 36 A
- Maximum fuse size: 50 A
- Product size (w x d x h): 660x660x1313 mm
- Weight: 130 kg
- Condensate drain size (flexible plastic hose): 3/4 BSPM inch
Options:
- Top or rear fan outlet
- Return air filter
- Condensate pump
- Compressor soft start
- Top discharge box
- External condenser unit
- Remote humidistat
