Technical data
- Length of the wash unit: 360, 720, 1000, 1440, 2000 cm
- Clear drive through width of the wash unit: 280 – 540 cm
- Maximum axle load: 15, 20, 30 or 50 t
- Height of splash walls: 150 cm
- Pump number: 2-25
- Max. water flow: 3600 – 45000 l/h
- Acoustic emission: <75 dB

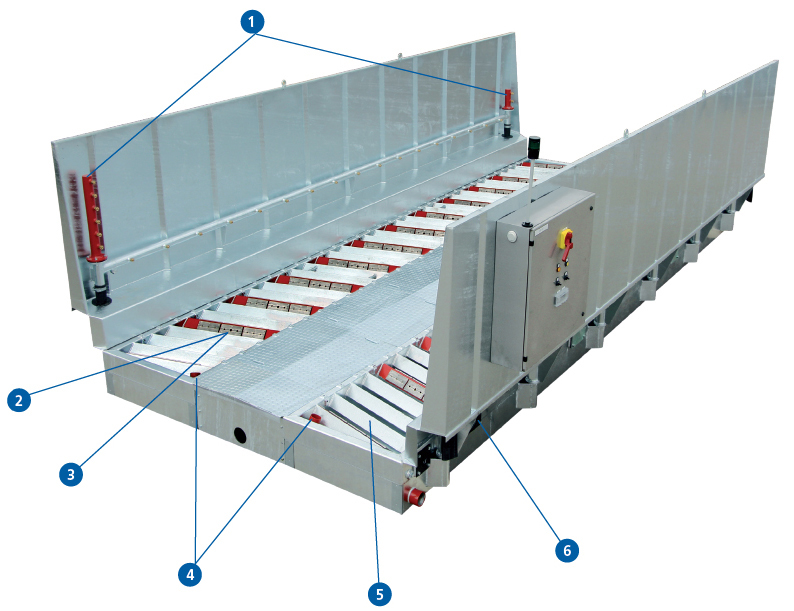

The ONE innovations
Modular Side Nozzle Concept
Consisting of interchangeable nozzle bars:
Nozzle bars can be adjusted at any time to modified conditions (e.g. oscillating nozzle bars).
Modular Bottom Nozzle Concept
(Pat. Pend. PCT/EP2016/051256 and PCT/EP2016/051257)
Consisting of interchangeable bottom nozzle plates:
Nozzle plates can be adjusted at any time to modified conditions
Reduced nozzle obstruction thanks to innovative special nozzles.
Spray Pattern
(Pat. Pend. PCT/EP2016/051256)
Water jet emitted from the bottom nozzles at oblique angles:
Higher washing effect on the treads
Additional cleaning effect in hard-to-reach places
Powerflush
(Pat. Pend. PCT/EP2016/051257)
Innovative mudguard washing:
Two Powerflush nozzles each at 900 l/min
Track Profiles
(Pat. Pend. PCT/EP2016/051256)
15° inclined track profiles:
Increased milling effect
Accessible with tracked vehicles
Very smooth running
Halved maximum load on the track profiles
Optimized Water Flow
Calculated theoretically, confirmed empirically:
Larger supply line cross-sections
Washing modules feature flow-optimized geometry
In collaboration with the Swiss Federal Institute of Technology Zurich (ETH)
