Vacuum cleaner for welding fumes suction 301 TORCH

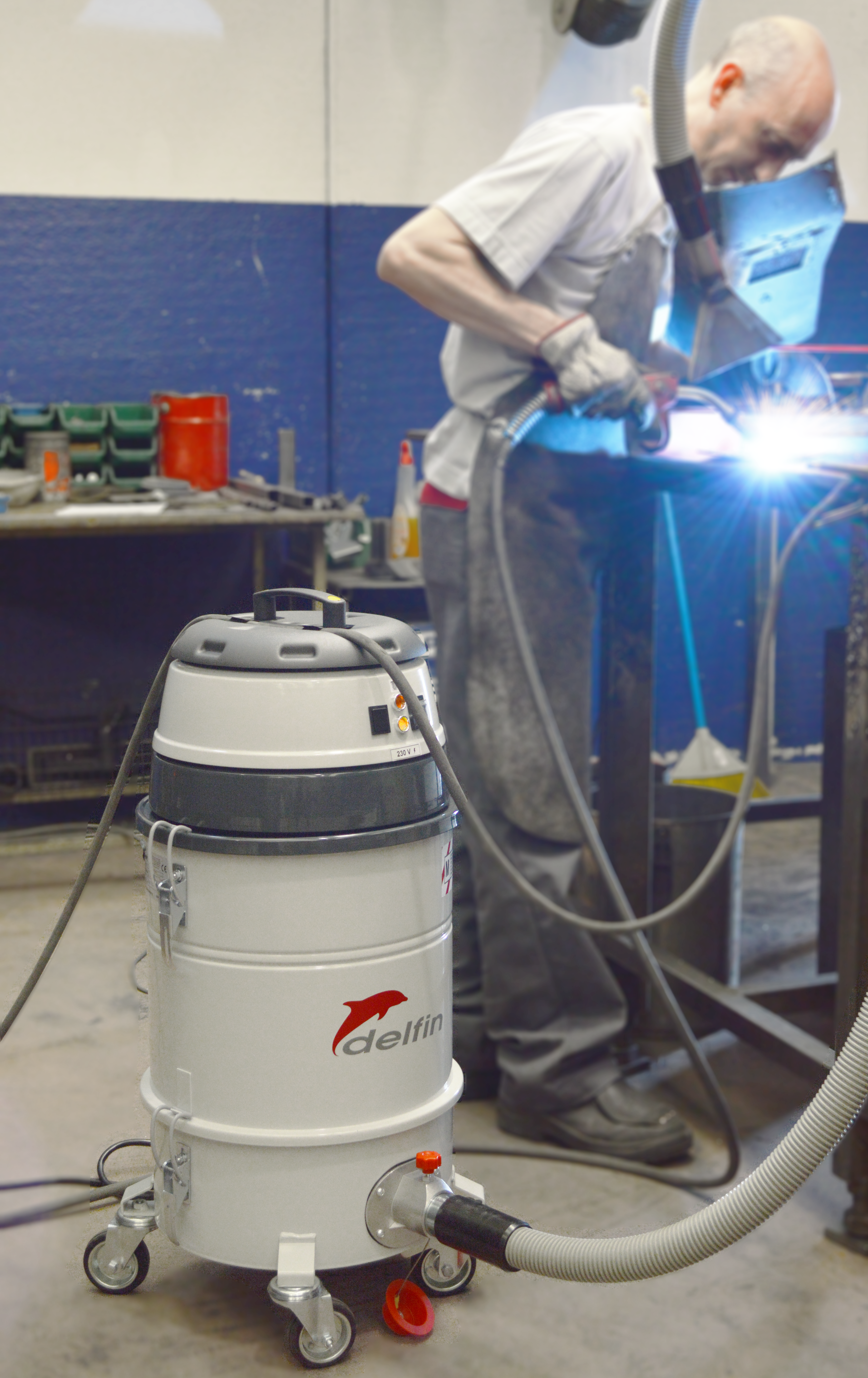

Sturdy and easy to transport, TORCH industrial vacuum cleaner has been conceived to remove possible welding fumes from the source, by keeping fine dust concentration to the extent permitted by law.

WELDING FUMES SUCTION

The suction of welding fumes in a mechanical workshop contributes to a healthier work environment, especially if directly at the source.
The suction at the source is the best way to collect and vacuum welding fumes and so to safeguard the welder’s health.
Torch 301 has a start and stop device which allows to power on/to stop the machine without the intervention of the welder, who will be free to only focus on using the welding torch.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0
Category:

Advantages

  • Optional articulated arm to suction in a restricted area
  • Suction directly from the MIG/MAG welding torch
  • Dustop filter cleaning system

Technical data

  • Voltage: 230V, 50Hz
  • Power: 1,15 kW
  • Current draw: 5 A
  • Suction inlet: 50 mm
  • Max waterlift: 2500 mmH2O
  • Max air flow: 180 m3/h
  • Capacity: 13 lt.
  • Noise level (EN ISO 3744): 74 dB(A)
  • Dimensions l/w/h: 40x50x86 cm
  • Weight: 25 kg
  • Prefilter: Non-sparking filter
  • Primary filter: Cartridge
  • Surface/Diameter: 7.500 cm2/245 mm
  • Media/Class: Polyester/M (IEC 60335-2-69)
  • Cleaning system: DuStop
  • Discharge system: Roll-out container

Optionals

  • Cartridge H14 absolute filter
  • Active carbon filter
  • Active carbon filter + Absolute filter HEPA
  • D.50 extraction hood
