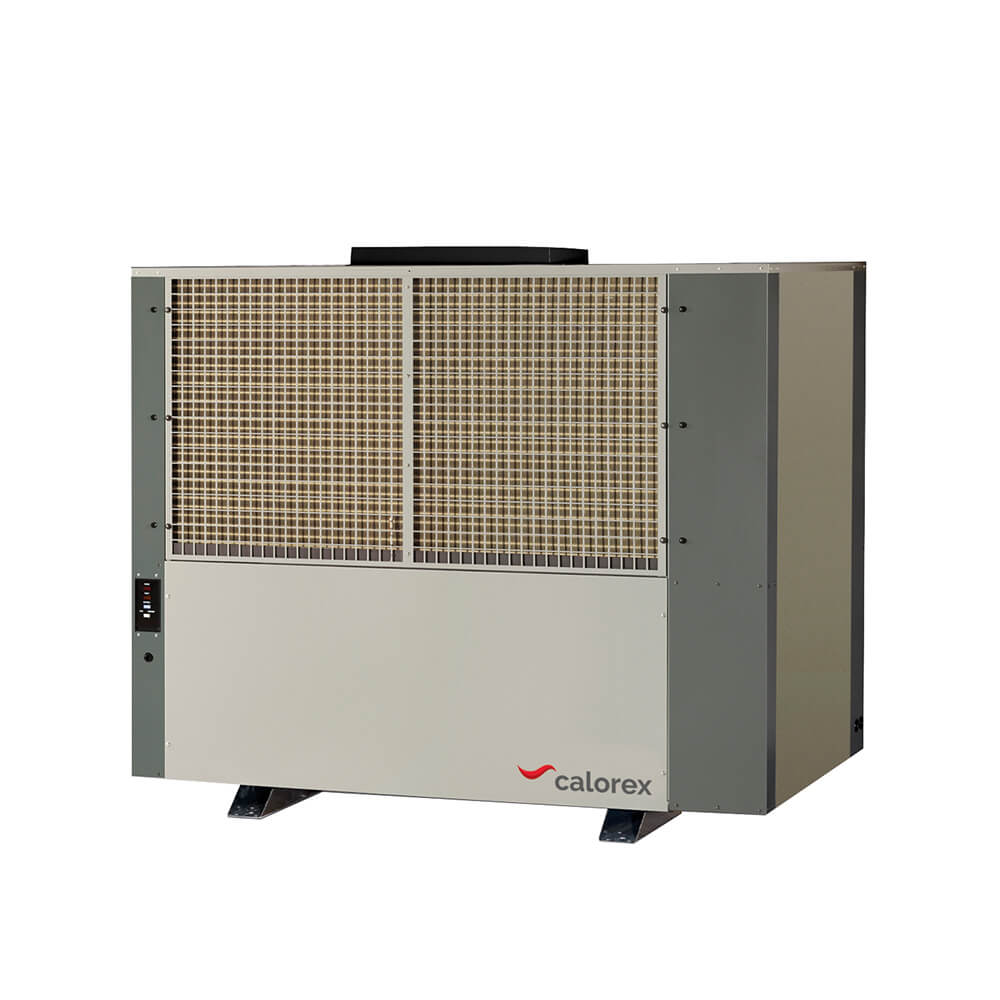

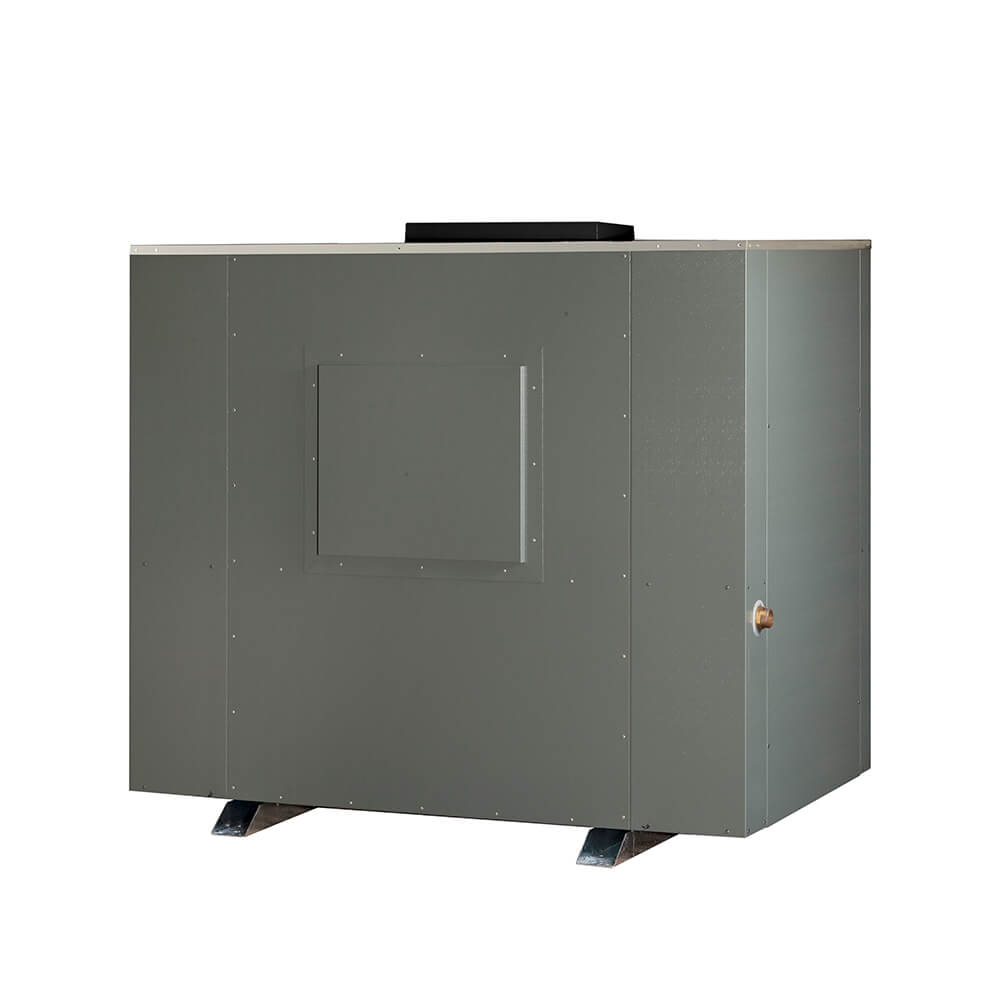

Industrial dehumidifier Calorex DH 600
Industrial dehumidifier Calorex DH 600 - Image 2
Industrial dehumidifier Calorex DH 600 - Image 3
Industrial dehumidifier Calorex DH 600 - Image 4

Industrial dehumidifier Calorex DH 600

Large-capacity floor-standing dehumidifiers

The DH 600 high-capacity floor-standing dehumidifier is self-contained with fully automatic operation. With integral humidistat, and options for heating, condensate pump and external condenser unit, and high-pressure fan, you can be sure in your space being controlled to your demands. This makes it ideal for warehousing and storage, substations and data centres.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0
Category:

Key features

  • Self contained with fully automatic operation

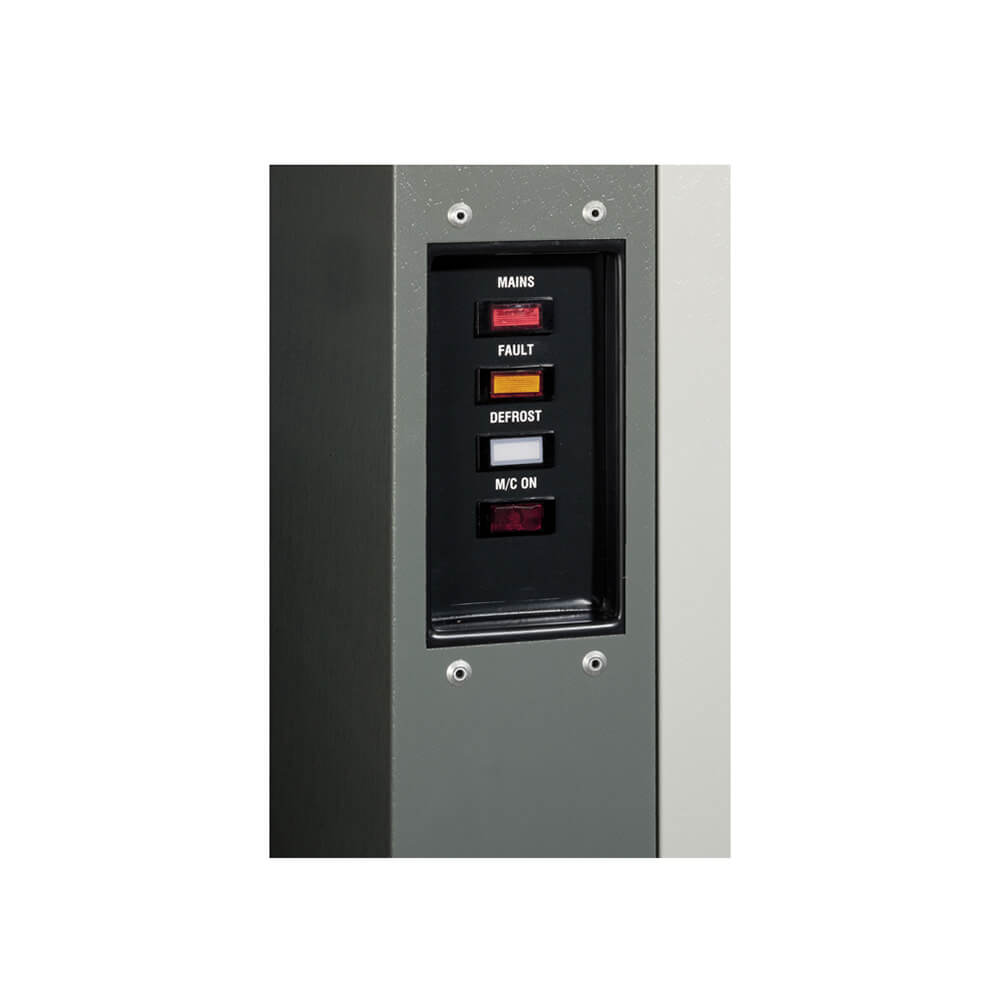

  • Integral humidistat
  • Polyester coated evaporator and condenser
Technical data
  • Operating temperature range: -15 – +35°C

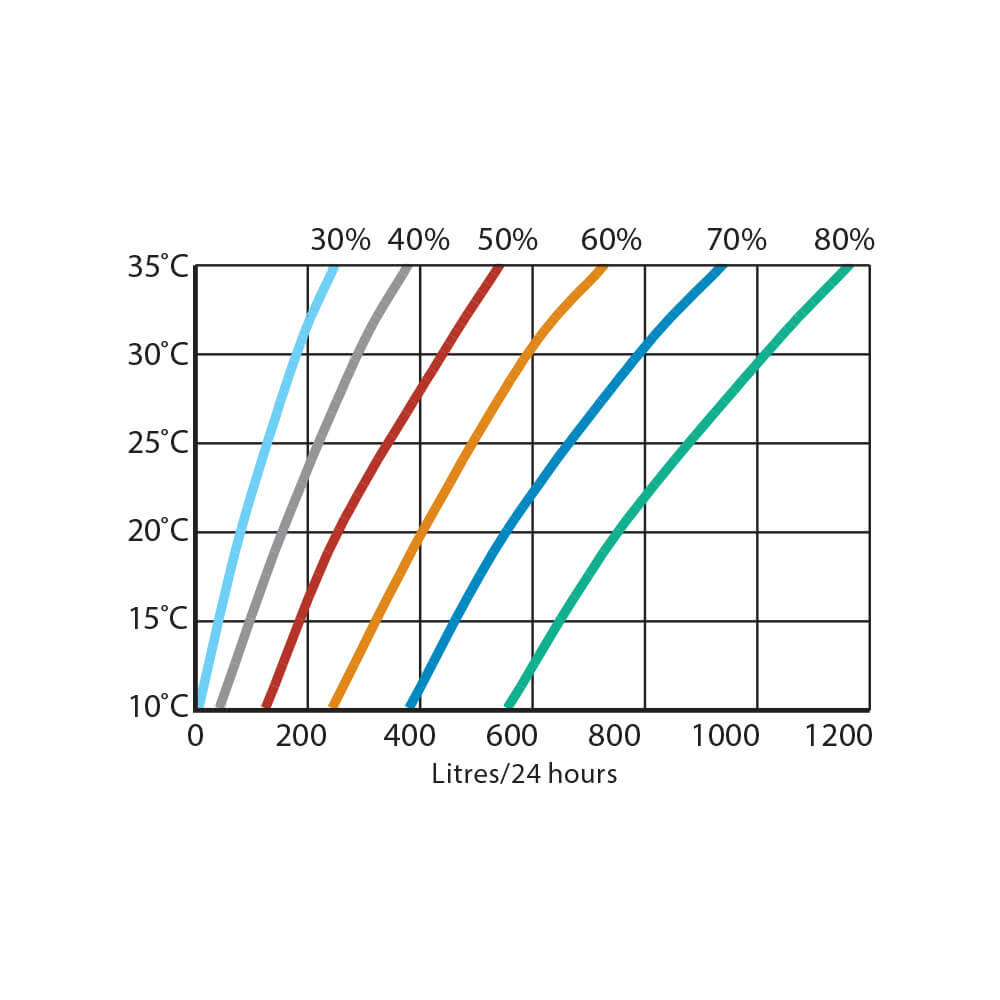

  • Dehumidification @ 30°C/60% RH: 600 l/24h
  • Heat recovered to air @ 30°C/60% RH: 29,7 kW
  • Air flow: 9.000 m3/h
  • External static pressure: 80 Pa
  • Sound pressure level @ 3m: 63 dB(A)
  • Refrigerant: R407c
  • Power supply: 400/3ph/50 V/Hz
  • Nominal power consumption: 10 kW
  • FLA: 26 A
  • Maximum supply fuse: 35 A
  • LRA (compressor start): 135 A
  • LRA (compressor soft-start): 55 A
  • R407C gas weight / CO2 equivalent: 14/24,84 kg/tons
  • Product size (w x d x h): 1730x1250x1600 mm
  • Weight: 497 kg
  • Condensate drain size (flexible plastic hose): 1½ BSPM inch
Options:
  • Top or rear fan outlet
  • High pressure fan
  • Return air filter
  • Condensate pump
  • Compressor soft start
  • Top discharge box
  • External condenser unit
  • Remote humidistat
