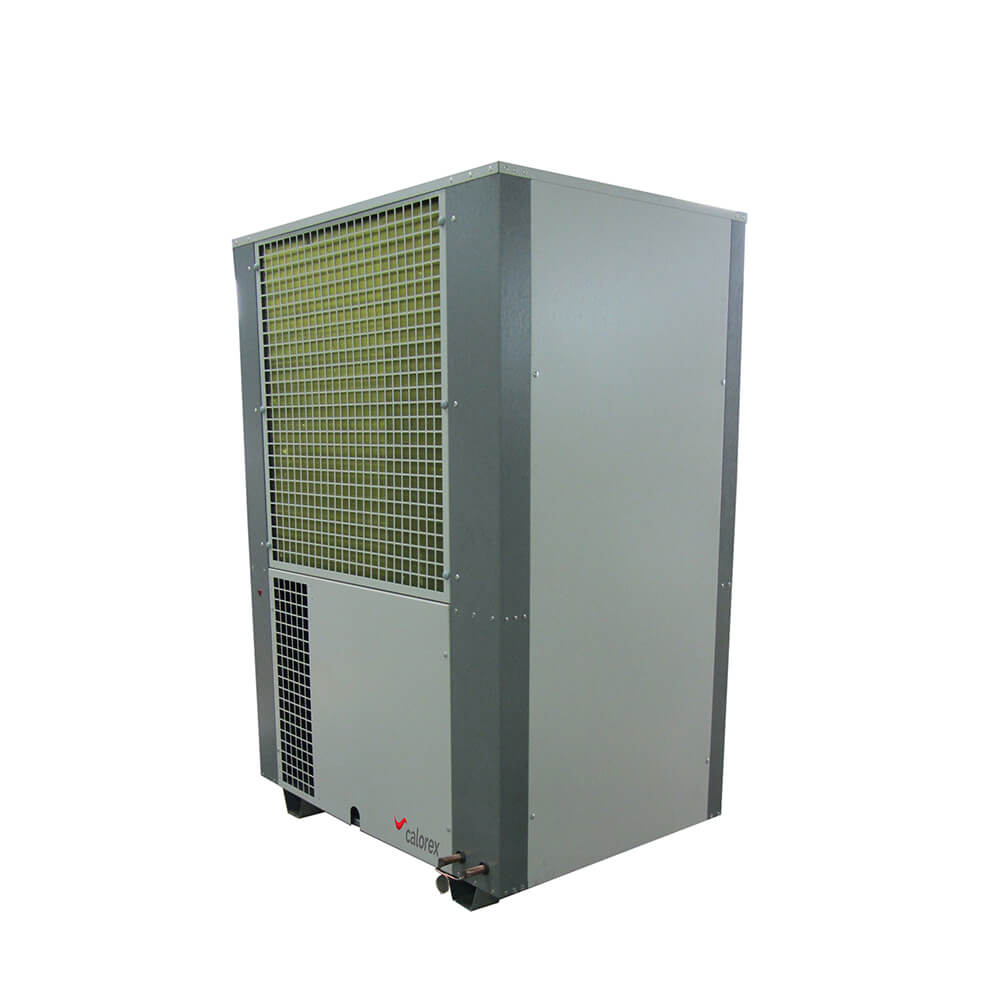

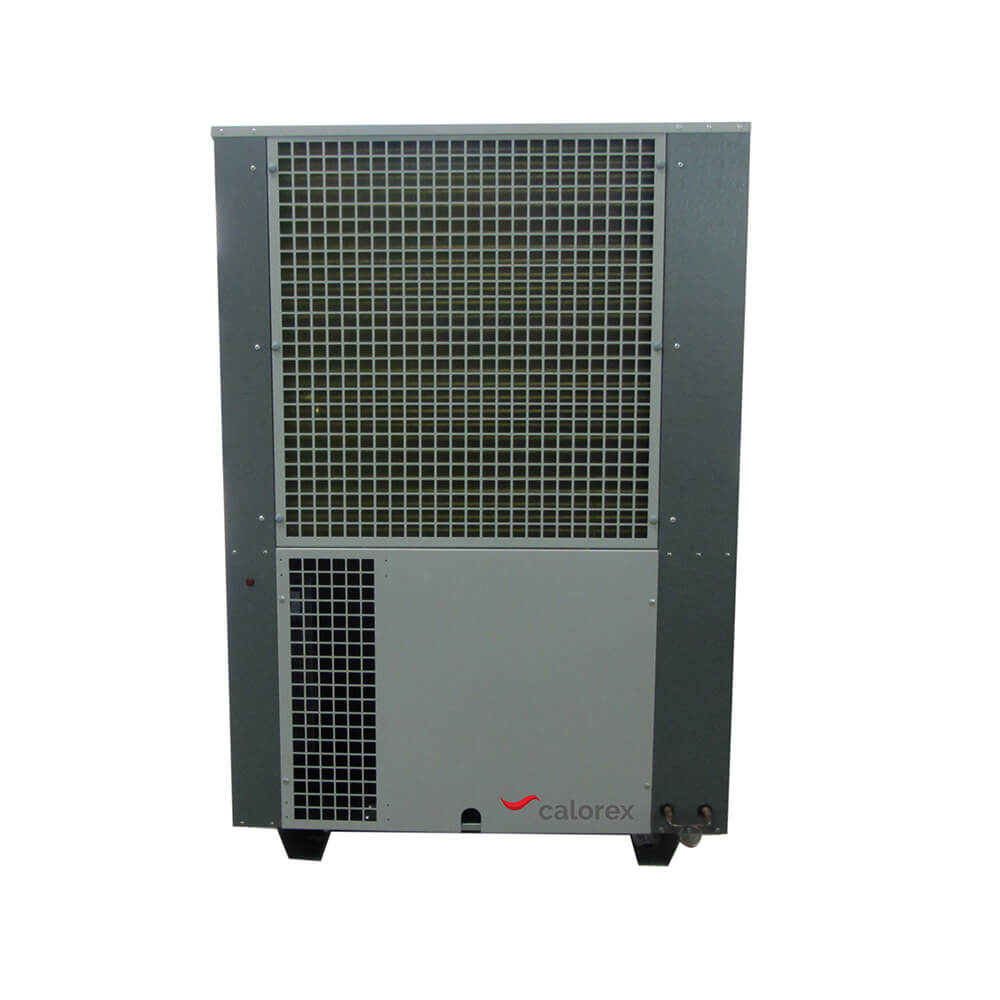

Industrial dehumidifier Calorex DH 334

High temperature floor-standing process drying

The DH 334 process dryer is excellent for rapid moisture removal, at low cost per litre removed. Using R134a refrigerant it can operate at higher temperatures than standard dryers, and the latent energy is reclaimed to reduce the overall power consumption. The energy consumption is further reduced as drying can take place at lower temperatures than traditional heating methods, lowering risk of heat damage, and improving product quality.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0
Category:

Key features

  • Rapid moisture removal at lowest cost per litre extracted
  • Latent energy reclaimed to reduce power consumption
  • Drying at lower temperatures reduces risk of heat damage
  • Even drying improves product quality
  • Low maintenance
Technical data
  • Operating temperature range: +30 – +70°C
  • Dehumidification @ 50°C/60% RH: 17 l/24h
  • Heat to air via dehumidification: 10 kW
  • Heat to air via resistance heaters and dehumidification: 18,5 kW
  • Air flow: 5.800 m3/h
  • External static pressure: 0 Pa
  • Sound pressure level @ 3m: 69 dB(A)
  • Refrigerant: R134a
  • Power supply: 400/3ph/50 V/Hz
  • Nominal power consumption: 14,1 kW
  • Min. supply capacity: 29 A
  • Maximum supply fuse: 35 A
  • Heater rating: 9 kW
  • FLA: 12 A
  • Nominal power consumed: 4,9 kW
  • LRA: 72 A
  • RLA: 12 A
  • Nominal running current: 9 A
  • Product size (w x d x h): 985x700x1476 mm
  • Weight: 170 kg
  • Condensate drain size (flexible plastic hose): 1½ BSPM inch
Options:
  • Range of Calorex control panels
  • Stainless steel cabinet
  • Air inlet filters
