Key features
- Self contained with fully automatic operation
- Integral humidistat
- Constant flow fan – automatically adjusts to ducting
- Polyester coated evaporator and condenser
- Plastisol coated galvanised steel cabinet
- Hot gas defrost for low temperature operation
Technical data
- Operating temperature range: -30 – +35°C

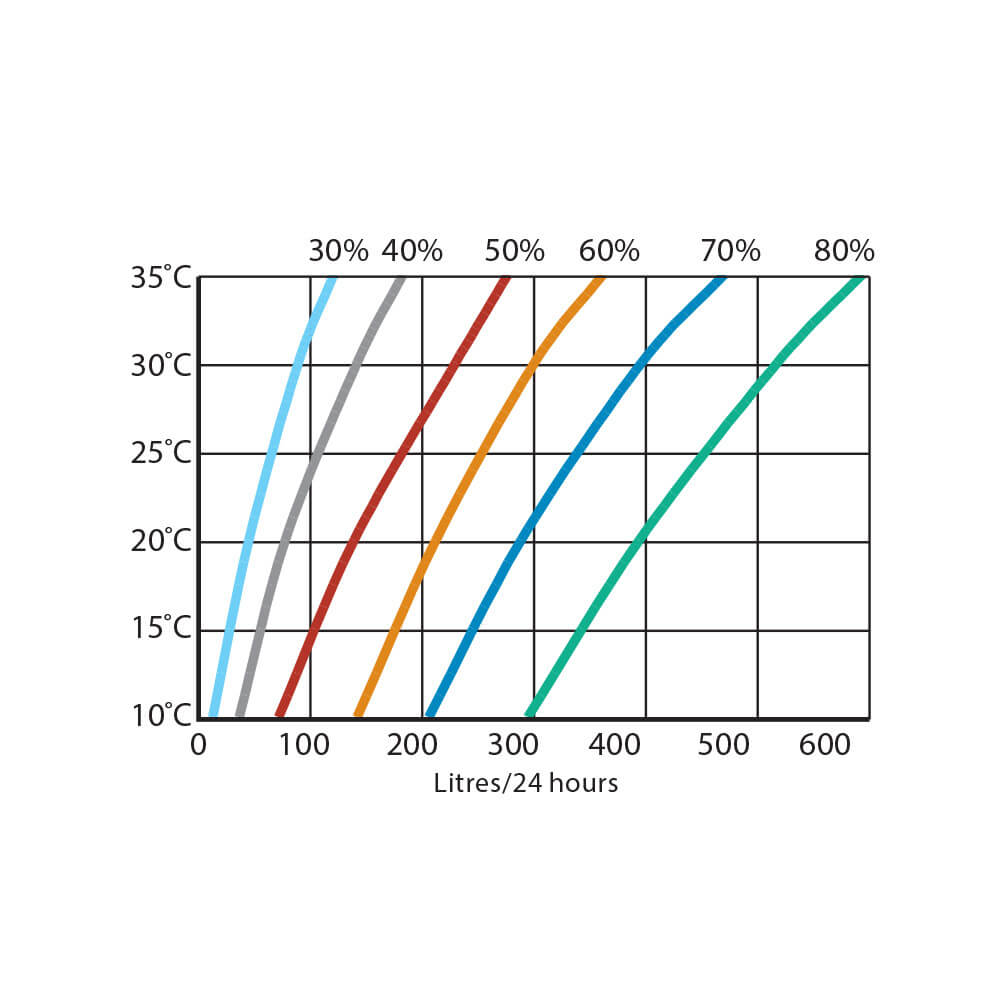

- Dehumidification @ 30°C/60% RH: 300 l/24h
- Heat recovered to air @ 30°C/60% RH: 14,7 kW
- Air flow: 5.000 m3/h
- External static pressure: 0-140 Pa
- Sound pressure level @ 3m: 66 dB(A)
- Refrigerant: R407c
- Power supply: 400/3ph/50 V/Hz
- Nominal power consumption: 6,7 kW
- FLA: 19 A
- Maximum supply fuse: 24 A
- LRA (compressor start): 101 A
- LRA (compressor soft-start): 34 A
- Product size (w x d x h): 980x826x1475 mm
- Weight: 220 kg
- Condensate drain size (flexible plastic hose): 1½ BSPM inch
Options:
- Return air filter
- Condensate pump
- Compressor soft start
- Top discharge box
- External condenser unit
- Remote humidistat
