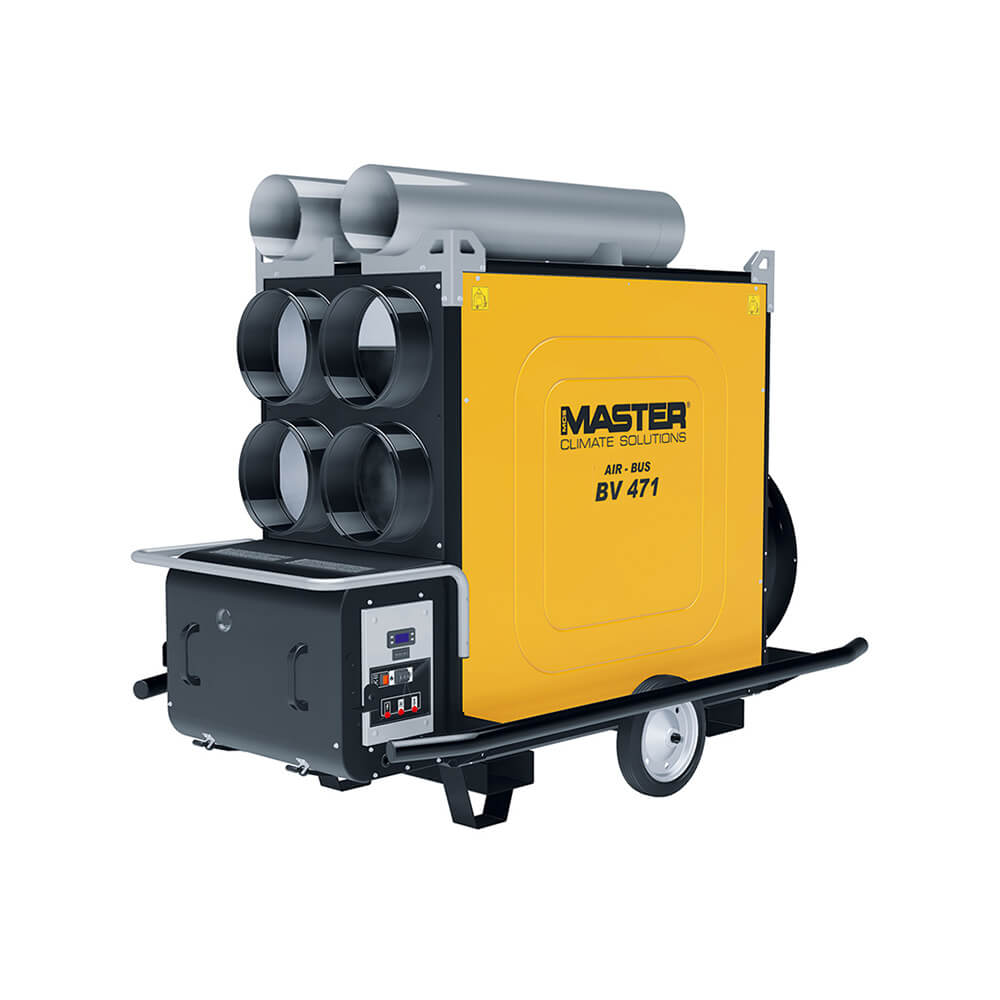

Model description

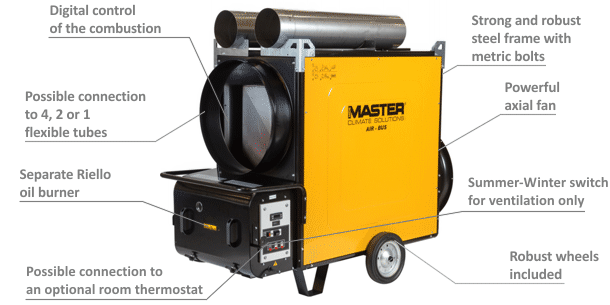

- Strong and robust steel frame with metric bolts

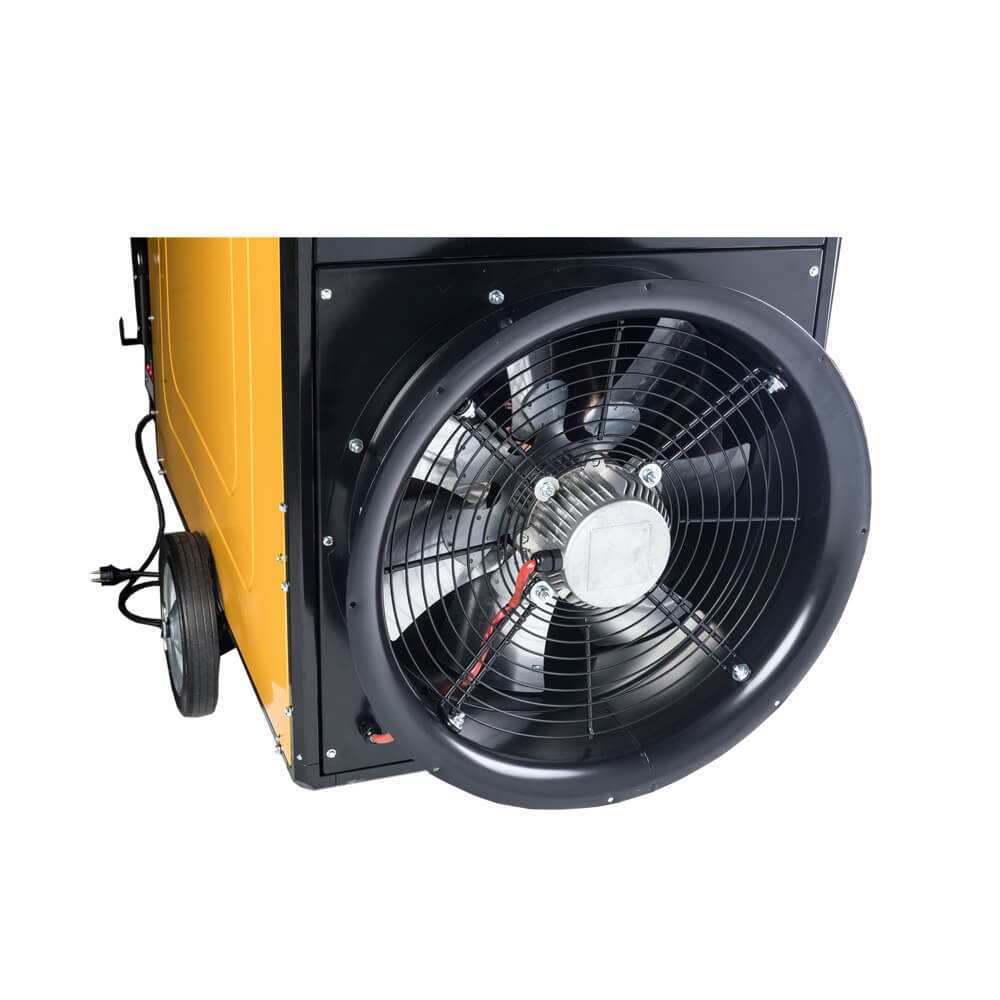

- Powerful axial fan
- Air pressure 250 Pa

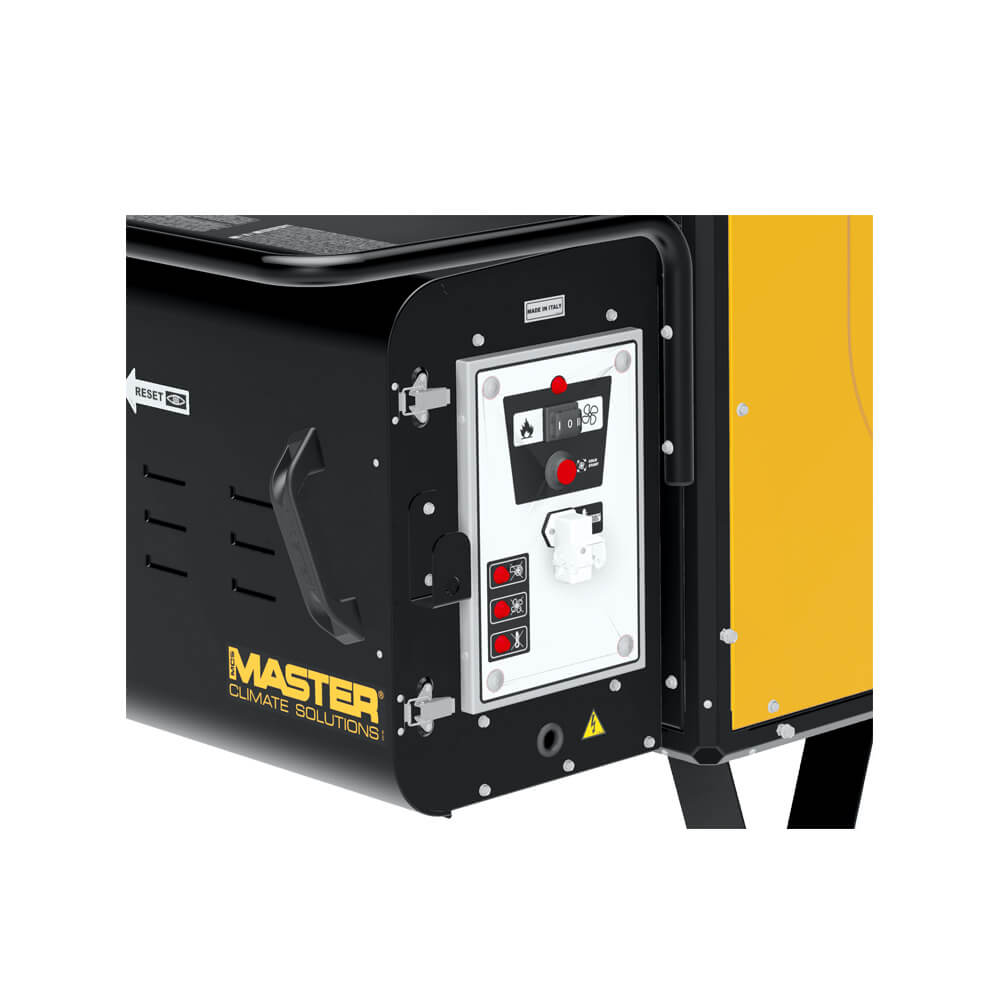

- Digital control of the combustion
- Unique “cold start” button for very cold environment
- Possible connection to an optional room thermostat

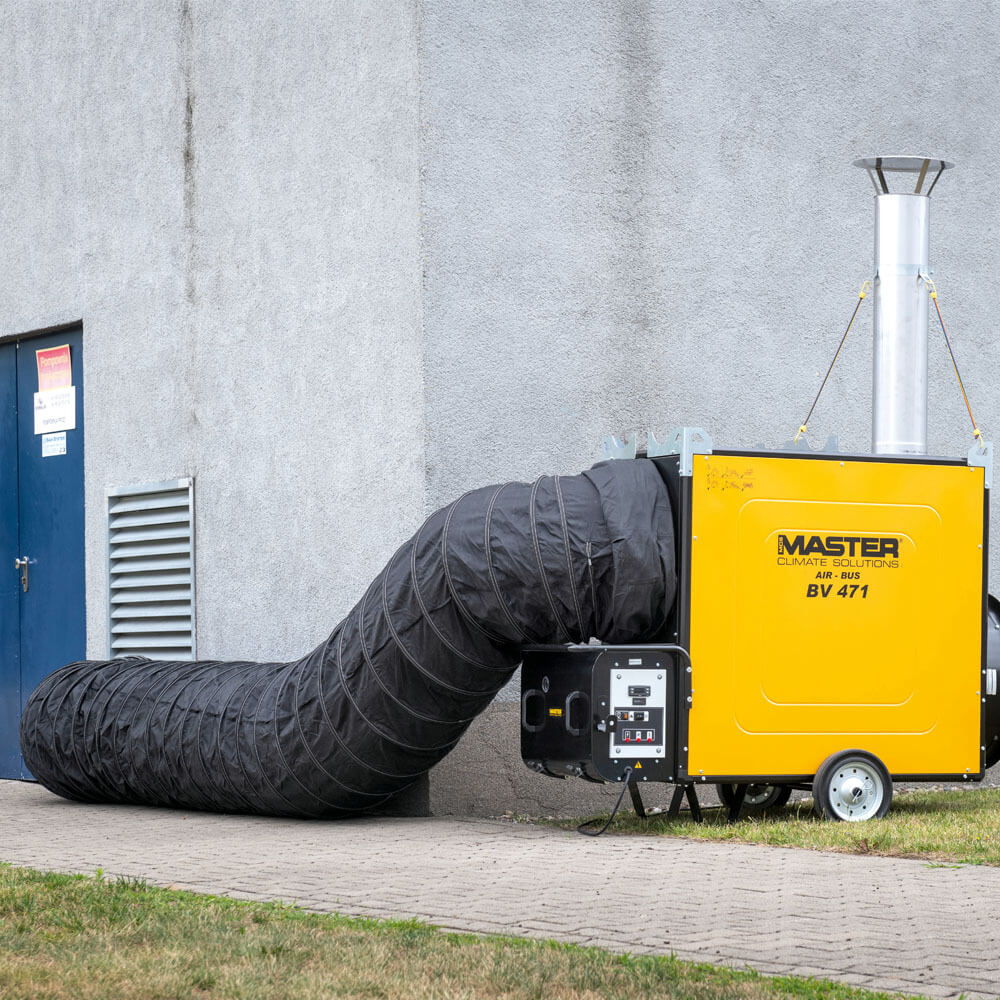

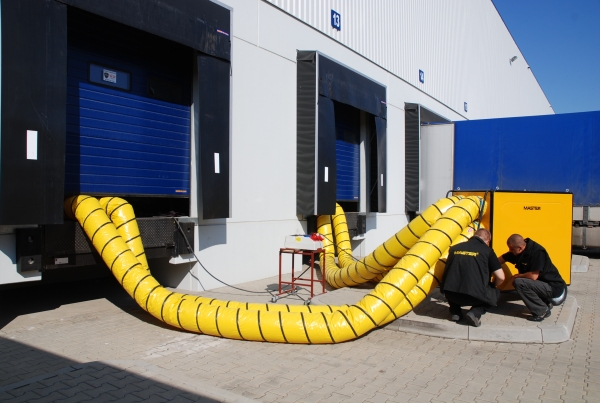

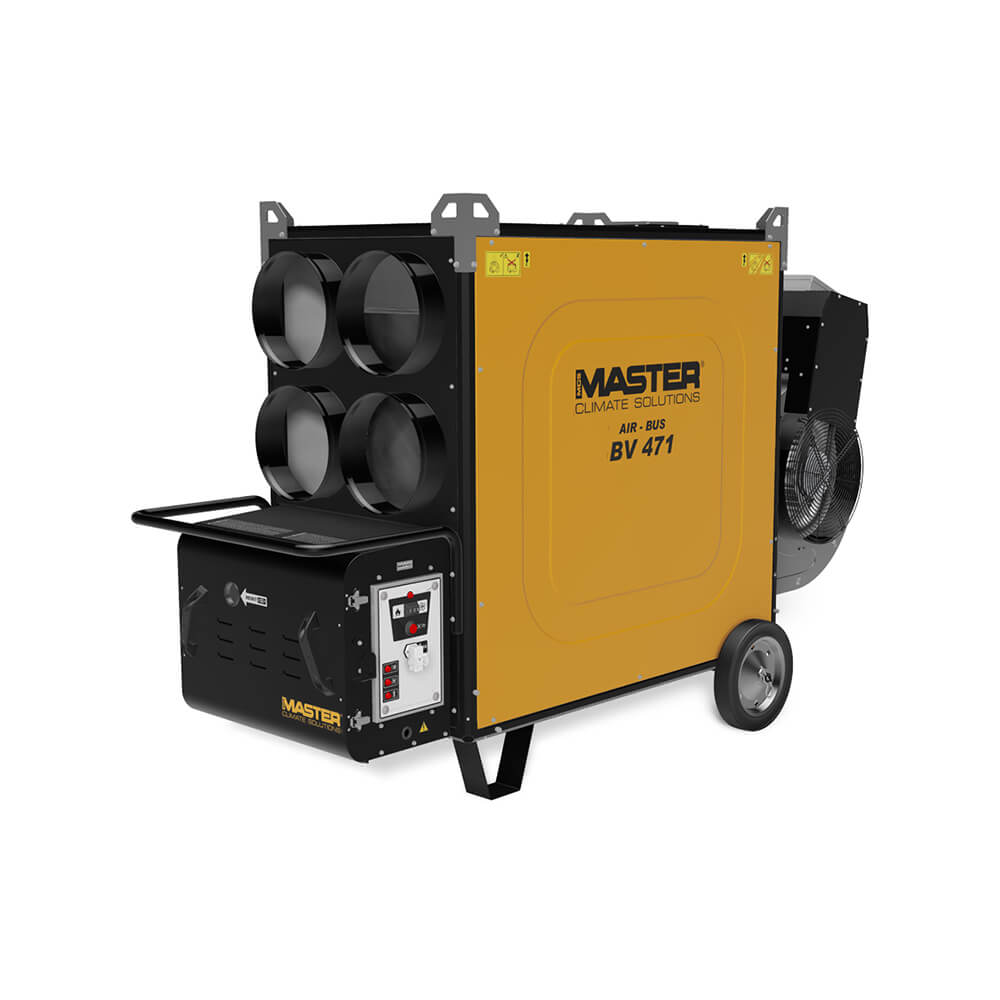

– analog or digital - Possible connection to 4, 2 or 1 flexible tubes

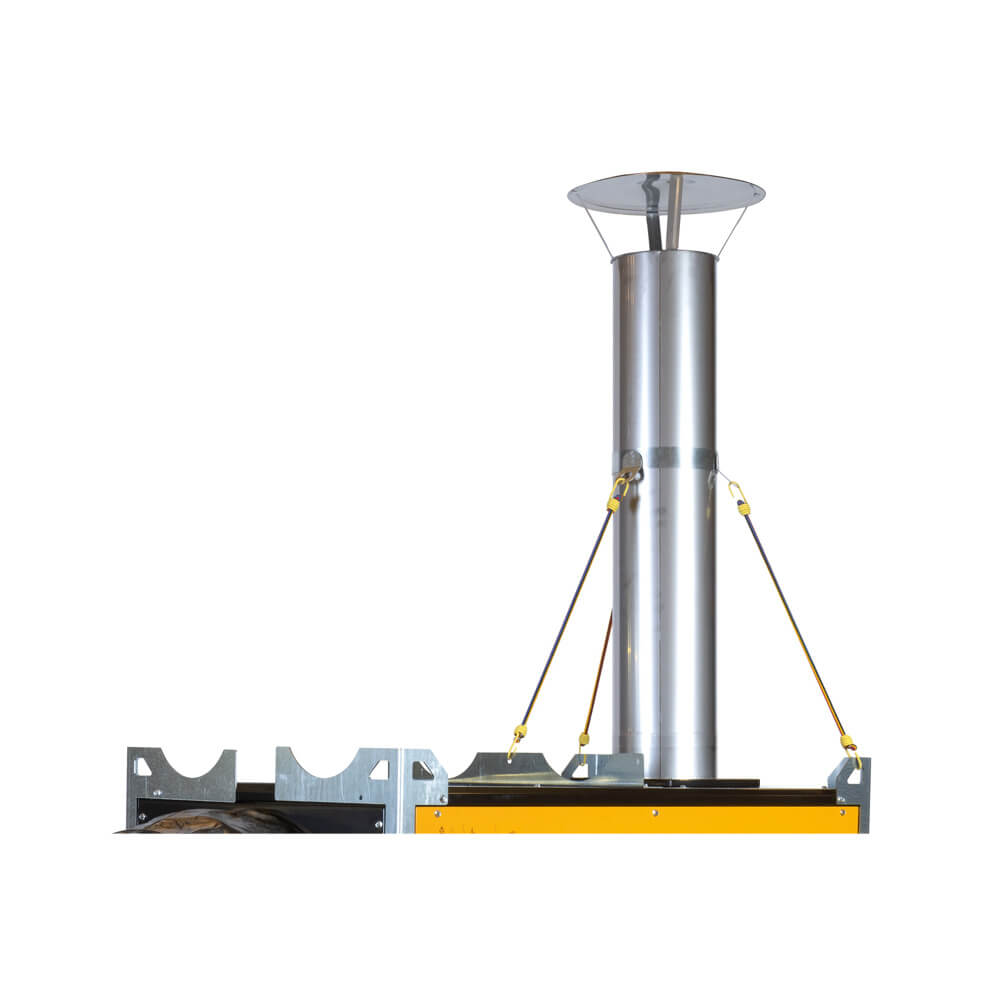

- Flue gas exhaust
- Separate Riello oil burner (or gas burner)
- Summer-Winter switch for ventilation only
- Electronic flame control with photocell
- Fan-Limit thermostat with automatic reset
- Limit thermostat with manual reset
- Two oil filters: oil pump filter and suction filter
- Quick connector to external tank
- Suction filter with heating option as a standard
- High efficiency heat exchanger made of stainless steel pipes
- Stainless steel combustion chamber
- Robust wheels included
- Electronic box protection: IP 55
- Optional 4 robust crane hooks
- High Air Pressure version (400 Pa) available on request
How to choose the right device >link<
Technical data
- Power: 136 kW
- Air displacement: 8500 m3/h
- Power supply: 230 V, 50 Hz
- Electric power: 1,5 kW
- Fuel consumption: 12,93 lit/h
- Rated current: 6,9 A
- Flue tube Ø: 200 mm
- Protection: IP 55
- Thermostat control: analog or digital
- Flex tube Ø: 1 x 60 cm or 4 x 27 cm
- Product size l/w/h: 1790x880x1360 mm
- Packaging dimensions l/w/h: 1730x755x1325 mm
- Weight net/gross: 270/300 kg
