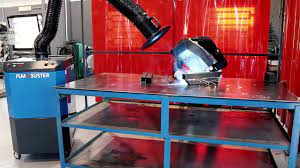

Fumebuster AC – Compact fume extractor with activated carbons for welding and chemical applications

The FUMEBUSTER H is equipped with a 1.5 kW suction unit that guarantees a high air flow rate of 1.300 m3/h. It is designed for filtering fumes, dusts, and vapors released during welding and chemical applications.

In Stock
Share (0)
Total: 0 Total: 0 Total: 0
Category:

Advantages

  • Thanks to the Hepa H13 absolute filter, it is suitable for extraction in environments where you want to reintroduce purified air into the working environment
  • This is a compact and mobile fume extractor, suitable for flexible use in mobile workplaces
  • Articulated arm for localised suction
  • Led indicator for filter saturation detection
  • Motor protection in case of wrong voltage
  • Warning light in case the fans turn in the wrong direction
  • 3 m cable

Technical data

  • Voltage: 400 V, 50 Hz
  • Power: 1,5 kW
  • Max air flow: 1.300 m3/h
  • Suction inlet: 150 mm
  • Noise level (EN ISO 3744): 72 dB(A)
  • Pre-Filter: Spark trap filter
  • Level detector for automatic motor cut off
  • Dimensions l/w/h: 65x75x129 cm
  • Weight: 131 kg

Filtration

  • 1 stage: Metallic filter with anti-spark trap
  • 2 stage: G4 fireproof pre-filter
  • 3 stage: F8 16 sqm main filter
  • 4 stage: 12 kg of activated carbons for odors

Catalog Fumebuster AC – SAS Trade
